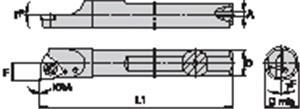

0.188 Inch Dia. x 4.000 Inch Overall Length x 0.260 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: GSBIW18743R-WG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Insert Shape Trigon
Min Bore Diameter 0.2600 Inch
Insert Style GSBIW
Tool Length 4 Inch
Drive Size T6
Grade WG
Head Length 0.5000 Inch
Hand of Tool Right
Shank Length 3.5000 Inch
Overall Length 4 Inch
Lead Angle -3 Degree
Axial Rake Angle 0 Degree
Brand WIDIA
Cutting Height 0.0100 Inch
Included Angle 80
Unit of Measure Inch
Product Type Boring Bar
Shank Diameter 3/16 Inch
