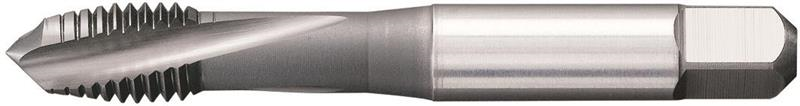

5/8-11 TiCN Coated 4 Left-Hand Spiral Flutes 3BX HSS-E-PM Form D Plug Chamfer Tap
- Item Code: GT205050 GP6520
- Brand: WIDIA
- Unit Size: 1
Description
Series GT20
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Left-Hand Spiral-Flute HSS-E-PM Taps
- Through Holes
Tech Specs
Back To Top| Thread Length | 0.9100 Inch |
|---|---|
| Number of Flutes | 4 |
| Chamfer | Plug |
| Flute Style | Helix |
| Coolant Through (Yes/No) | No |
| Thread Class | 3BX |
| Diameter | 5/8 - 11 |
| Coating | TiCN |
| Thread Type | NC/UNC |
| Brand | WIDIA |
| Grade | GP6520 |
| Product Name | Tap |
| Shank Length | 1.9200 Inch |
| Unit of Measure | Inch |
| Hand of Tool | Left Hand |
| Material | HSS-E-PM |
| Shank Style | Square |
| Overall Length | 3.8100 Inch |
| Shank Diameter | 0.4800 Inch |
| Square Size | 0.3600 Inch |
| Threads Per Inch | 11 |
