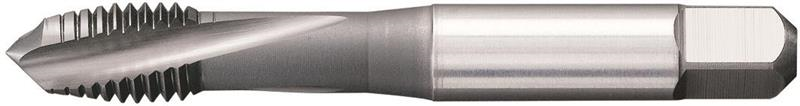

M10 x 1.5 TiCN Coated 3 Left-Hand Spiral Flutes 6HX HSS-E-PM Form D Plug Chamfer Tap
- Item Code: GT205075 WU32MG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT20
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Left-Hand Spiral-Flute HSS-E-PM Taps
- Through Holes
Tech Specs
Back To Top| Hand of Tool | Left Hand |
|---|---|
| Overall Length | 746.76 MM |
| Thread Length | 13.40 MM |
| Coating | TiCN |
| Product Name | Tap |
| Flute Style | Helix |
| Square Size | 7.21 MM |
| Chamfer | Plug |
| Pitch | 1.50 MM |
| Shank Diameter | 9.677 MM |
| Thread Type | METRIC |
| Brand | WIDIA |
| Grade | GP6520 |
| Unit of Measure | Metric |
| Diameter | M10 X 1.5 |
| Material | HSS-E-PM |
| Coolant Through (Yes/No) | No |
| Number of Flutes | 3 |
| Shank Style | Square |
| Thread Class | 6HX |
