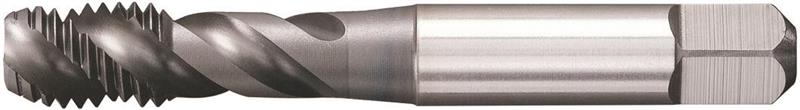

1/4-20 TiCN Coated 3 Spiral Flutes 3BX HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT305039
- Brand: WIDIA
- Unit Size: 1
Description
Series GT23
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Spiral Flute HSS-E-PM Taps
- Blind Holes
Tech Specs
Back To Top| Thread Type | NC/UNC |
|---|---|
| Threads Per Inch | 20 |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Hand of Tool | Right Hand |
| Shank Diameter | 0.2550 Inch |
| Thread Length | 0.4400 Inch |
| Grade | GP6520 |
| Material | HSS-E-PM |
| Chamfer | Semi Bottoming |
| Coating | TiCN |
| Coolant Through (Yes/No) | No |
| Flute Style | Helix |
| Overall Length | 2-1/2 Inch |
| Thread Class | 3BX |
| Square Size | 0.1890 Inch |
| Diameter | 1/4 - 20 |
| Product Name | Tap |
| Shank Length | 1.2300 Inch |
