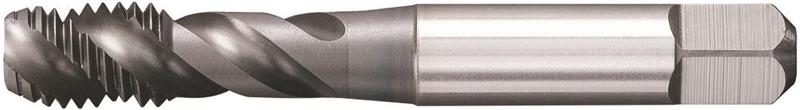

3/8-16 TiCN Coated 3 Spiral Flutes 3BX HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT305043
- Brand: WIDIA
- Unit Size: 1
Description
Series GT23
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Spiral Flute HSS-E-PM Taps
- Blind Holes
Tech Specs
Back To Top| Thread Class | 3BX |
|---|---|
| Thread Length | 0.6000 Inch |
| Thread Type | NC/UNC |
| Flute Style | Helix |
| Shank Diameter | 0.3810 Inch |
| Hand of Tool | Right Hand |
| Threads Per Inch | 16 |
| Material | HSS-E-PM |
| Shank Length | 1.3000 Inch |
| Diameter | 3/8 - 16 |
| Product Name | Tap |
| Coolant Through (Yes/No) | No |
| Number of Flutes | 3 |
| Shank Style | Square |
| Grade | GP6520 |
| Square Size | 0.2840 Inch |
| Brand | WIDIA |
| Chamfer | Semi Bottoming |
| Coating | TiCN |
| Overall Length | 2.9400 Inch |
| Unit of Measure | Inch |
