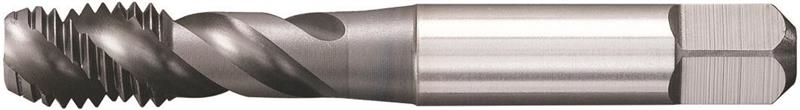

M3 x 0.5 TiN+CrC/C Coated 2 Spiral Flutes 6HX HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT305061 GM6515
- Brand: WIDIA
- Unit Size: 1
Description
Series GT23
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Spiral Flute HSS-E-PM Taps
- Blind Holes
Tech Specs
Back To Top| Coating | CrC/C |
|---|---|
| Shank Length | 1.0600 Inch |
| Thread Class | 6HX |
| Pitch | 0.50 MM |
| Thread Type | METRIC |
| Grade | GM6515 |
| Product Name | Tap |
| Thread Length | 0.6300 Inch |
| Material | HSS-E-PM |
| Overall Length | 1.9400 Inch |
| Square Size | 0.1080 Inch |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
| Flute Style | Helix |
| Hand of Tool | Right Hand |
| Shank Diameter | 0.1410 Inch |
| Brand | WIDIA |
| Chamfer | Semi Bottoming |
| Diameter | M3 X 0.5 |
| Number of Flutes | 2 |
| Unit of Measure | Inch |
