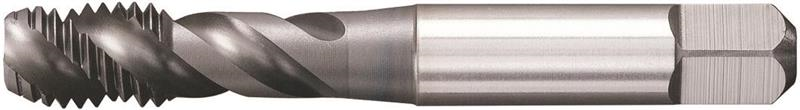

M4 x 0.7 TiN+CrC/C Coated 3 Spiral Flutes 6HX HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT305062
- Brand: WIDIA
- Unit Size: 1
Description
Series GT23
Victory
High-Performance Taps
Form C Semi-Bottoming Chamfer
Metric DIN 371, 374 and 376
For Steel and Stainless Steel
Features
Back To Top- Spiral Flute HSS-E-PM Taps
- Blind Holes
Tech Specs
Back To Top| Grade | GM6515 |
|---|---|
| Thread Length | 0.3200 Inch |
| Chamfer | Semi Bottoming |
| Coolant Through (Yes/No) | No |
| Overall Length | 2.1200 Inch |
| Material | HSS-E-PM |
| Coating | CrC/C |
| Thread Type | METRIC |
| Product Name | Tap |
| Unit of Measure | Inch |
| Diameter | M4 X 0.7 |
| Pitch | 0.70 MM |
| Thread Class | 6HX |
| Brand | WIDIA |
| Flute Style | Helix |
| Hand of Tool | Right Hand |
| Shank Diameter | 0.1680 Inch |
| Shank Length | 1.1900 Inch |
| Square Size | 0.1290 Inch |
| Number of Flutes | 3 |
| Shank Style | Square |
