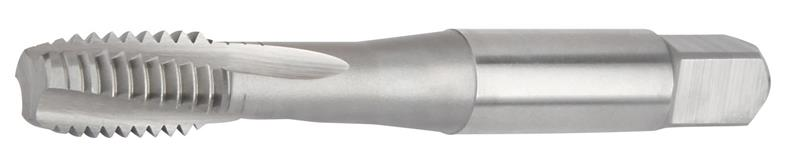

1/4-28 Nitride 3 Spiral Flutes H3 HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT625031 WS30MG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT62
High-Performance Taps
Victory™ Spiral-Flute HSS-E-PM Taps
Blind Holes
For Titanium and Titanium Alloys
Tech Specs
Back To Top| Grade | WS30MG |
|---|---|
| Shank Length | 1.2200 Inch |
| Thread Length | 0.4400 Inch |
| Chamfer | Semi Bottoming |
| Coolant Through (Yes/No) | No |
| Material | HSS-E-PM |
| Brand | WIDIA |
| Hand of Tool | Right Hand |
| Overall Length | 2-1/2 Inch |
| Product Name | Tap |
| Square Size | 0.1890 Inch |
| Thread Type | UNF |
| Shank Diameter | 0.2550 Inch |
| Thread Limit | H3 |
| Unit of Measure | Inch |
| Diameter | 1/4 - 28 |
| Number of Flutes | 3 |
| Shank Style | Square |
| Threads Per Inch | 28 |
