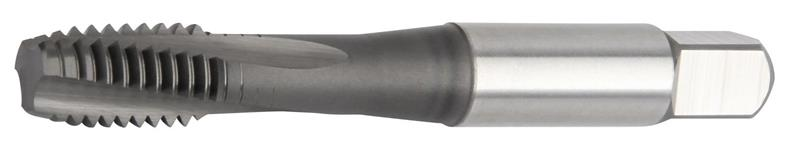

M8 x 1.25 Nitride 3 Spiral Flutes D5 HSS-E-PM Form C Semi-Bottoming Chamfer Tap
- Item Code: GT625515 WS30MG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT62
High-Performance Taps
Victory™ Spiral-Flute HSS-E-PM Taps
Blind Holes
For Titanium and Titanium Alloys
Tech Specs
Back To Top| Shank Length | 32.30 MM |
|---|---|
| Thread Length | 12.10 MM |
| Brand | WIDIA |
| Grade | WS30MG |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Shank Style | Square |
| Product Name | Tap |
| Shank Diameter | 8.077 MM |
| Thread Limit | D5 |
| Coolant Through (Yes/No) | No |
| Diameter | M8 X 1.25 |
| Thread Type | METRIC |
| Chamfer | Semi Bottoming |
| Pitch | 1.25 MM |
| Square Size | 5.99 MM |
| Unit of Measure | Metric |
| Hand of Tool | Right Hand |
| Overall Length | 68.70 MM |
