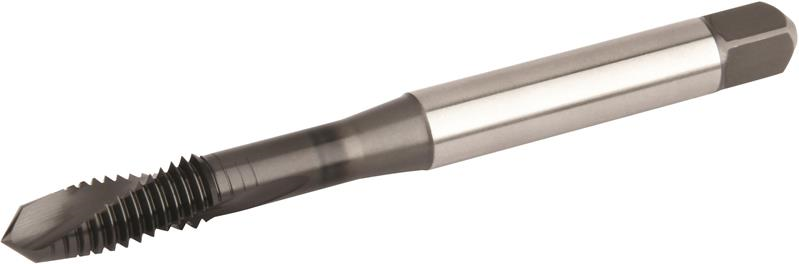

#8-32 TiN+CrC/C Coated 2 Left-Hand Spiral Flutes H3 DIN-ANSI HSS-E Form D Plug Chamfer Tap
- Item Code: GT725014 WN44EG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT72
High-Performance Taps
Victory™ Left-Hand Spiral-Flute HSS-E Taps
Through Holes
For Aluminum
Tech Specs
Back To Top| Grade | WN44EG |
|---|---|
| Overall Length | 2.4800 Inch |
| Shank Length | 1.4900 Inch |
| Thread Length | 0.4300 Inch |
| Number of Flutes | 2 |
| Product Name | Tap |
| Square Size | 0.1290 Inch |
| Brand | WIDIA |
| Shank Diameter | 0.1680 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Diameter | #8 - 32 |
| Thread Type | NC/UNC |
| Chamfer | Plug |
| Hand of Tool | Right Hand |
| Thread Limit | H3 |
| Threads Per Inch | 32 |
| Coolant Through (Yes/No) | No |
| Material | HSS Cobalt |
