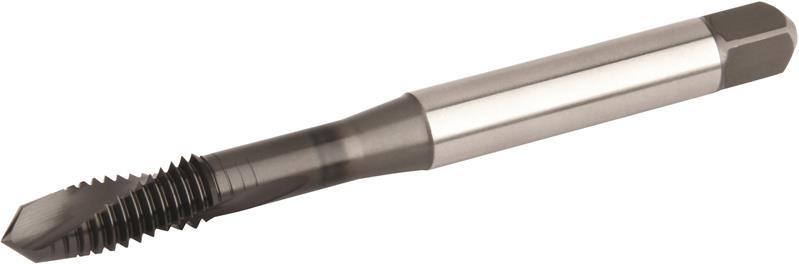

M6 x 1 TiN+CrC/C Coated 2 Left-Hand Spiral Flutes D5 DIN-ANSI HSS-E Form D Plug Chamfer Tap
- Item Code: GT725041 WN44EG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT72
High-Performance Taps
Victory™ Left-Hand Spiral-Flute HSS-E Taps
Through Holes
For Aluminum
Tech Specs
Back To Top| Overall Length | 80.00 MM |
|---|---|
| Shank Length | 42.90 MM |
| Grade | WN44EG |
| Material | HSS Cobalt |
| Square Size | 4.80 MM |
| Chamfer | Plug |
| Diameter | M6 X 1 |
| Product Name | Tap |
| Shank Diameter | 6.477 MM |
| Thread Limit | D5 |
| Hand of Tool | Right Hand |
| Thread Length | 12.00 MM |
| Brand | WIDIA |
| Number of Flutes | 2 |
| Thread Type | METRIC |
| Unit of Measure | Metric |
| Coolant Through (Yes/No) | No |
| Pitch | 1.00 MM |
| Shank Style | Square |
