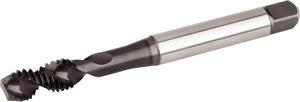

#4-40 HSS-E-PM TiN+CrC/C Coated 2 Flute H2 Semi-Bottoming Chamfer Spiral-Flute Tap

  • Item Code: GT825011 WN44EG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Grade WN44EG
Material HSS-E
Thread Size #4 - 40
Thread Type NC/UNC
Type Spiral Flute Tap
Overall Length Inches 2.2000"
Thread Length (in.) 0.3100"
Overall Length Metric 56.00 mm
Coolant Through No
Thread Length (mm) 8.00 mm
Chamfer Semi-Bottoming
Thread Diameter (mm) 2.84 mm
Adapter/Shank/Bore Dia (mm) 3.58 mm
Cutting Direction Right
Series GT Series
Thread Diameter (in.) 0.1120"
Adapter/Shank/Bore Dia (in.) 0.1410"
Brand WIDIA
Number of Flutes 2
Thread Limit H2
