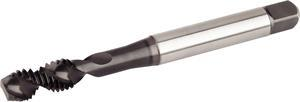

#6-32 HSS-E-PM TiN+CrC/C Coated 2 Flute H3 Semi-Bottoming Chamfer Spiral-Flute Tap
- Item Code: GT825013 WN44EG
- Brand: WIDIA
- Unit Size: 1
| Grade |
WN44EG |
| Thread Type |
NC/UNC |
| Brand |
WIDIA |
| Number of Flutes |
2 |
| Adapter/Shank/Bore Dia (in.) |
0.1410" |
| Series |
GT Series |
| Thread Length (in.) |
0.3500" |
| Adapter/Shank/Bore Dia (mm) |
3.58 mm |
| Chamfer |
Semi-Bottoming |
| Cutting Direction |
Right |
| Overall Length Inches |
2.2000" |
| Thread Diameter (in.) |
0.1380" |
| Thread Length (mm) |
9.00 mm |
| Thread Limit |
H3 |
| Thread Size |
#6 - 32 |
| Coolant Through |
No |
| Material |
HSS-E |
| Overall Length Metric |
56.00 mm |
| Thread Diameter (mm) |
3.51 mm |
| Type |
Spiral Flute Tap |
