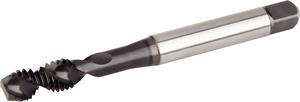

#10-24 HSS-E-PM TiN+CrC/C Coated 2 Flute H3 Semi-Bottoming Chamfer Spiral-Flute Tap

  • Item Code: GT825015-WN44EG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Coolant Through No
Chamfer Semi-Bottoming
Thread Diameter (in.) 0.1900"
Thread Length (mm) 12.00 mm
Overall Length Metric 70.00 mm
Series GT Series
Thread Diameter (mm) 4.83 mm
Thread Limit H3
Adapter/Shank/Bore Dia (in.) 0.1940"
Adapter/Shank/Bore Dia (mm) 4.93 mm
Cutting Direction Right
Overall Length Inches 2.7600"
Material HSS-E
Thread Length (in.) 0.4700"
Thread Size #10 - 24
Type Spiral Flute Tap
Thread Type NC/UNC
Brand WIDIA
Grade WN44EG
Number of Flutes 2
