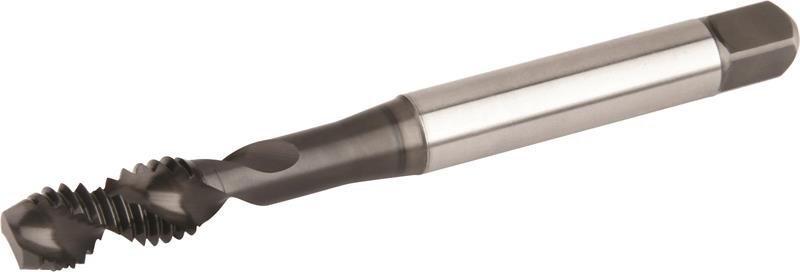

1/4-20 TiN+CrC/C Coated 2 Spiral Flutes H3 DIN-ANSI HSS-E Form C Semi-Bottoming Chamfer Tap
- Item Code: GT825017 WN44EG
- Brand: WIDIA
- Unit Size: 1
Description
Series GT82
High-Performance Taps
Victory™ Spiral-Flute HSS-E Taps
Blind Holes
For Aluminum
Tech Specs
Back To Top| Overall Length | 3.1500 Inch |
|---|---|
| Shank Diameter | 0.2550 Inch |
| Thread Type | UNC |
| Thread Length | 0.5900 Inch |
| Thread Limit | H3 |
| Product Name | Tap |
| Square Size | 0.1890 Inch |
| Shank Length | 1.6900 Inch |
| Diameter | 1/4 - 20 |
| Coolant Through (Yes/No) | No |
| Material | HSS Cobalt |
| Shank Style | Square |
| Grade | WN44EG |
| Hand of Tool | Right Hand |
| Threads Per Inch | 20 |
| Brand | WIDIA |
| Chamfer | Semi Bottoming |
| Number of Flutes | 2 |
| Unit of Measure | Inch |
