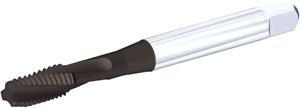

#8-32 HSS-E-PM TiN+CrC/C Coated 3 Flute H3 Semi-Bottoming Chamfer Spiral-Flute Tap

  • Item Code: GT865014-WN44EG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Thread Length (mm) 11.00 mm
Thread Length (in.) 0.4300"
Thread Diameter (mm) 4.17 mm
Overall Length Inches 2.4800"
Thread Limit H3
Thread Size #8 - 32
Brand WIDIA
Chamfer Semi-Bottoming
Cutting Direction Right
Number of Flutes 3
Coolant Through No
Grade WN44EG
Material HSS-E
Overall Length Metric 63.00 mm
Thread Diameter (in.) 0.1640"
Type Spiral Flute Tap
Thread Type NC/UNC
Adapter/Shank/Bore Dia (in.) 0.1680"
Adapter/Shank/Bore Dia (mm) 4.27 mm
Series GT Series
