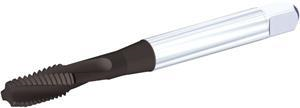

5/16-18 in. HSS-E-PM TiN+CrC/C Coated 3 Flute H3 Semi-Bottoming Chamfer Spiral-Flute Tap
- Item Code: GT865021 WN44EG
- Brand: WIDIA
- Unit Size: 1
| Adapter/Shank/Bore Dia (mm) |
8.08 mm |
| Grade |
WN44EG |
| Material |
HSS-E |
| Overall Length Inches |
3.5400" |
| Overall Length Metric |
90.00 mm |
| Thread Length (mm) |
15.00 mm |
| Thread Limit |
H3 |
| Type |
Spiral Flute Tap |
| Brand |
WIDIA |
| Thread Length (in.) |
0.5900" |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Thread Diameter |
5/16" |
| Chamfer |
Semi-Bottoming |
| Thread Diameter (in.) |
0.3125" |
| Thread Type |
NC/UNC |
| Coolant Through |
No |
| Thread Size |
5/16 - 18 |
| Adapter/Shank/Bore Dia (in.) |
0.3180" |
| Thread Diameter (mm) |
7.94 mm |
| Series |
GT Series |
