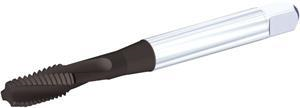

3/8-16 in. HSS-E-PM TiN+CrC/C Coated 3 Flute H3 Semi-Bottoming Chamfer Spiral-Flute Tap
- Item Code: GT865025 WN44EG
- Brand: WIDIA
- Unit Size: 1
| Adapter/Shank/Bore Dia (in.) |
0.3810" |
| Chamfer |
Semi-Bottoming |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Thread Diameter (in.) |
0.3750" |
| Thread Size |
3/8 - 16 |
| Adapter/Shank/Bore Dia (mm) |
9.68 mm |
| Brand |
WIDIA |
| Overall Length Inches |
3.9400" |
| Thread Type |
NC/UNC |
| Material |
HSS-E |
| Thread Length (mm) |
19.00 mm |
| Type |
Spiral Flute Tap |
| Series |
GT Series |
| Thread Diameter (mm) |
9.53 mm |
| Thread Length (in.) |
0.7500" |
| Coolant Through |
No |
| Grade |
WN44EG |
| Overall Length Metric |
100.00 mm |
| Thread Diameter |
3/8" |
| Thread Limit |
H3 |
