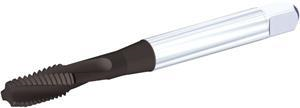

M6 x 1 HSS-E-PM TiN+CrC/C Coated 3 Flute D5 Semi-Bottoming Chamfer Spiral-Flute Tap

  • Item Code: GT865041-WN44EG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Thread Diameter (mm) 6.00 mm
Thread Limit D5
Adapter/Shank/Bore Dia (in.) 0.2550"
Series GT Series
Thread Type Metric
Coolant Through No
Thread Diameter (in.) 0.2362"
Brand WIDIA
Cutting Direction Right
Number of Flutes 3
Thread Size M6 X 1
Overall Length Metric 80.00 mm
Thread Length (mm) 12.00 mm
Material HSS-E
Overall Length Inches 3.1500"
Type Spiral Flute Tap
Grade WN44EG
Thread Length (in.) 0.4700"
Adapter/Shank/Bore Dia (mm) 6.48 mm
Chamfer Semi-Bottoming
