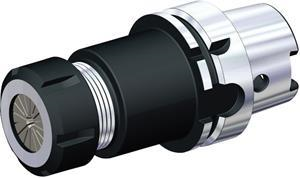

28 mm x 100 mm ER16 HSK100A Single-Angle Collet Chuck

  • Item Code: HSK100AER16100M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Clamping Hole Length (mm) 10.225 mm
Clamping Hole Length (in.) 0.4035"
Adapter/Shank/Bore Dia (in.) 3.9370"
Adapter/Shank/Bore Dia (mm) 100.00 mm
Brand Widia-Erickson
Lock Nut Dia. (in.) 1.2598"
Overall Length (mm) 149.90 mm
Coolant Thru Yes
Collet Series ER16
Gage Length (in.) 3.9370"
Gage Length (mm) 100.00 mm
Lock Nut Dia. (mm) 32.00 mm
Overall Length (in.) 5.9020"
