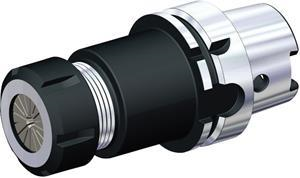

34 mm x 100 mm ER20 HSK100A Single-Angle Collet Chuck

  • Item Code: HSK100AER20100M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length (in.) 5.9016"
Clamping Hole Length (mm) 11.80 mm
Clamping Hole Length (in.) 0.4695"
Lock Nut Dia. (in.) 1.3780"
Brand Widia-Erickson
Gage Length (in.) 3.9370"
Coolant Thru Yes
Gage Length (mm) 100.00 mm
Lock Nut Dia. (mm) 35.00 mm
Collet Series ER20
Adapter/Shank/Bore Dia (in.) 3.9370"
Adapter/Shank/Bore Dia (mm) 100.00 mm
Overall Length (mm) 149.90 mm
