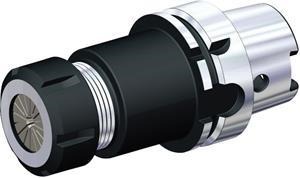

63 mm x 120 mm ER40 HSK100A Single-Angle Taper Shank Collet Chuck

  • Item Code: HSK100AER40120M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length (mm) 120.00 mm
Gage Length (in.) 4.7244"
Collet Series ER40
Clamping Hole Length (in.) 0.4695"
Coolant Thru Yes
Adapter/Shank/Bore Dia (in.) 3.9370"
Lock Nut Dia. (mm) 63.00 mm
Clamping Hole Length (mm) 11.80 mm
Lock Nut Dia. (in.) 2.4803"
Overall Length (in.) 6.6890"
Overall Length (mm) 169.90 mm
Adapter/Shank/Bore Dia (mm) 100.00 mm
Brand Widia-Erickson
