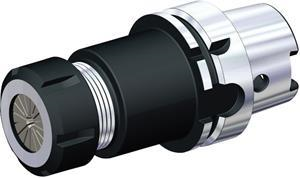

28 mm x 100 mm HSK50A ER16 Single Angle Collet Chuck

  • Item Code: HSK50AER16100M
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length (mm) 124.90 mm
Overall Length (in.) 4.9173"
Clamping Hole Length (mm) 6.55 mm
Clamping Hole Length (in.) 0.2580"
Adapter/Shank/Bore Dia (in.) 1.9685"
Brand Widia-Erickson
Lock Nut Dia. (in.) 1.2598"
Coolant Thru Yes
Gage Length (in.) 3.9370"
Adapter/Shank/Bore Dia (mm) 50.00 mm
Collet Series ER16
Gage Length (mm) 100.00 mm
Lock Nut Dia. (mm) 32.00 mm
