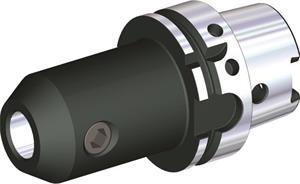

3/8 Inch Hole Diameter, HSK63A Taper Shank End Mill Holder

  • Item Code: HSK63AEM038300
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (mm) 9.525
Adapt/Shank/Bore Diameter WKPS F 3/8
Adapter Size Workpiece Side 0375
Adapter Style Machine Side HSK
Adapter Type Machine Side-EPP HSK - Hollow Taper Shank
Body Diameter 1 Workpce Side (In) 1.0000
Clamp Screw ID Drive Size 3/16
Clamp Screw Thread Size 3/8-16
Flange Length (Metric) 25.950
Gage Length 1 (Inch) 3.0000
Gage Length 1 (Metric) 76.200
Overall Length (Inch) 4.2560
Overall Length (Metric) 108.100
Shank Length (Inch) 1.2559
Usable Length (Inch) 1.9780
Usable Length (Metric) 50.241
Adapt/Shank/Bore Diameter WKPS (In) 0.3750
Body Diameter 1 Workpce Side (mm) 25.400
Adapter Style Machine Side-EPP HSK-01 Sm Contact Surf A/C
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (mm) 63.000
Units of Tool (Extract) IN - Inch
Adapter/Shank/Bore Diameter (Inch) 2.4803
Shank Length (Metric) 31.900
Adapter/Shank/Bore Diameter (Fractional) 2.4803
Brand WIDIA-Erickson
System Size Machine Side HSK63A
Adapter Size Machine Side-EPP 0630
