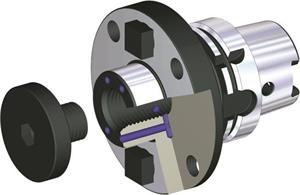

HSK63A 1-1/2 Inch Arbor x 2.25 Inch Gage Length SMC IN-HSK Shell Mill Adapter with Through Coolant

  • Item Code: HSK63ASMC150225
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter Style Machine Side-EPP HSK-01 Sm Contact Surf A/C
Adapter/Shank/Bore Diameter (Fractional) 2.4803
Body Diameter 1 Workpce Side (In) 3.8100
Centerline Height (Metric) 0.000
Cutter Ret Screw ID Drive Size 3/8
Flange-Front End Dist (In) 2.1665
Flange-Front End Dist (mm) 55.030
Gage Length 1 (Inch) 2.2500
Gage Length 1 (Metric) 57.150
Max Interference Diameter (Inch) 1.9685
Overall Length (Inch) 4.4440
Overall Length (Metric) 112.880
Shank Length (Metric) 31.900
System Size Machine Side HSK63A
Usable Length (Inch) 2.2500
Usable Length (Metric) 57.150
Adapter/Shank/Bore Diameter (Inch) 2.4803
Body Diameter 1 Workpce Side (mm) 96.800
Centerline Height (Inch) 0.0000
Adapt/Shank/Bore Diameter WKPS (mm) 38.100
Adapter Size Machine Side-EPP 0630
Adapter Size Workpiece Side 1500
Units of Tool (Extract) IN - Inch
Adapter Style Machine Side HSK
Adapter Type Machine Side-EPP HSK - Hollow Taper Shank
Flange Length (Metric) 25.950
Shank Length (Inch) 1.2559
Adapt/Shank/Bore Diameter WKPS (In) 1.5000
Brand WIDIA-Erickson
Adapter/Shank/Bore Diameter (mm) 63.000
Pilot Length (Inch) 0.9380
Adapt/Shank/Bore Diameter WKPS F 1 1/2
Adapter Type Machine Side Taper Shank
Pilot Length (Metric) 23.830
