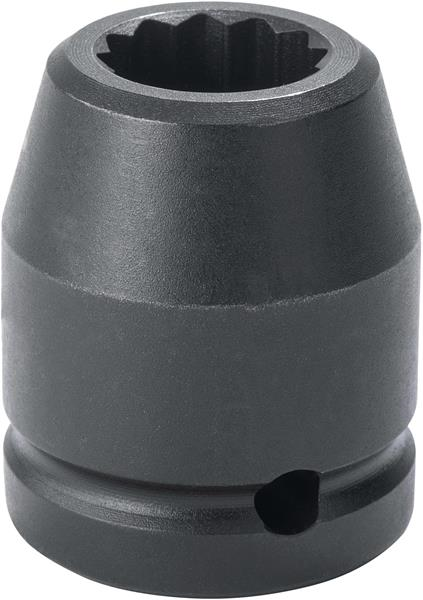

3/4 Inch Drive Impact Socket 21 mm - 12 Point - Proto®

  • Item Code: J07521MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Carton Weight [lbs] 39.320
UPC Code 662679112707
Item Quantity 1
Specification_ASME ASME B107.110
Box Width [in] 2.600
Drive End Outside Diameter [in] 1-5/8
Item Weight [lbs] 0.690
Mouth Width 2 [in] 39/64
Point Size 12
Box Height [in] 1.800
Crush Retaining Ring JRR07523
Carton Height [in] 8.200
Drive Size [in] 3/4
Finish Black Oxide
Harmonization Code 8204200000
Length Type Standard
O-Ring J07500R
Size [mm] 21
Box Length [in] 10.700
Carton Width [in] 9.000
Brand Proto
Carton Length [in] 13.000
Item Height [in] 1.600
Item Width [in] 1.600
Nut End Outside Diameter [in] 1-3/8
Box Quantity 6
Box Weight [lbs] 4.140
Country of Origin United States
Item Length [in] 2.000
Carton Quantity 55
Nut Depth [in] 39/64
Overall Length [in] 2
