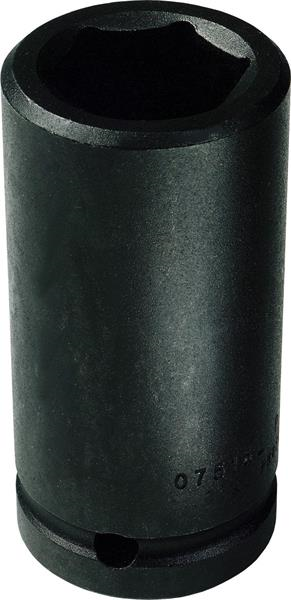

3/4 Inch Drive Deep Impact Socket 1-1/2 Inch - 6 Point - Proto®

  • Item Code: J07524L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Box Height [in] 2.400
Nut Depth [in] 1-1/16
UPC Code 662679360788
Crush Retaining Ring JRR07526
Harmonization Code 8204200000
Item Length [in] 3.500
Item Weight [lbs] 2.250
Length [in] 3-1/2
Point Size 6
Box Length [in] 7.000
Size [in] 1-1/2
Country of Origin United States
Item Quantity 1
Box Quantity 2
Item Height [in] 2.400
Nut End Outside Diameter [in] 2-3/8
Overall Length [in] 3-1/2
Finish Black Oxide
Item Width [in] 2.400
O-Ring J07500R
Specification_ASME ASME B107.110-2012
Box Width [in] 2.400
Bolt Clearance Depth [in] 2-7/16
Brand Proto
Drive End Outside Diameter [in] 1-3/4
Box Weight [lbs] 4.850
Drive Size [in] 3/4
Length Type Deep
