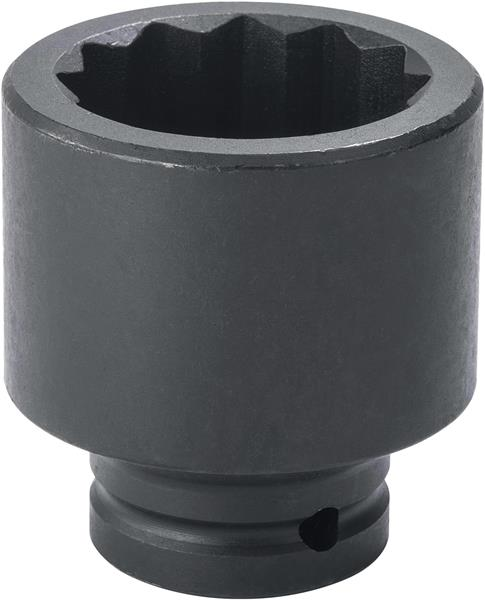

3/4 Inch Drive Impact Socket 29 mm - 12 Point - Proto®

  • Item Code: J07529MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Carton Weight [lbs] 38.780
Mouth Width 2 [in] 1-7/64
UPC Code 662679112783
Drive Size [in] 3/4
Finish Black Oxide
Item Quantity 1
Item Width [in] 2.200
O-Ring J07500R
Overall Length [in] 2-1/8
Box Weight [lbs] 5.650
Carton Length [in] 13.500
Carton Width [in] 9.000
Drive End Outside Diameter [in] 1-41/64
Item Height [in] 2.200
Item Weight [lbs] 0.940
Length Type Standard
Size [mm] 29
Box Width [in] 3.300
Carton Quantity 40
Harmonization Code 8204200000
Specification_ASME ASME B107.110
Box Length [in] 11.900
Carton Height [in] 7.500
Point Size 12
Crush Retaining Ring JRR07523
Brand Proto
Item Length [in] 2.800
Nut Depth [in] 1-7/64
Box Height [in] 2.500
Box Quantity 6
Country of Origin United States
Nut End Outside Diameter [in] 1-13/16
