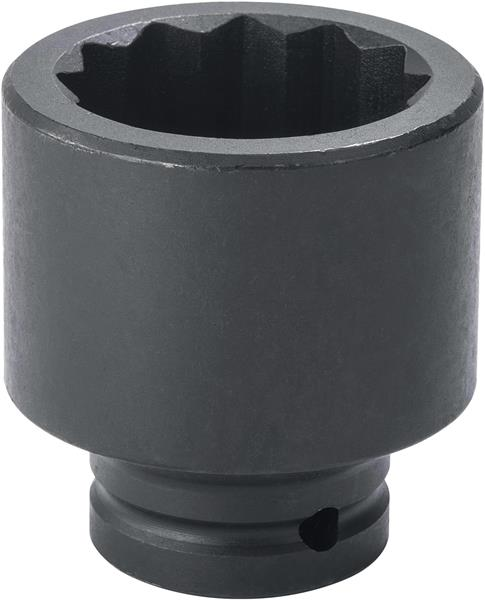

3/4 Inch Drive Impact Socket 30 mm - 12 Point - Proto®

  • Item Code: J07530MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Carton Weight [lbs] 41.860
Item Length [in] 2.200
UPC Code 662679112790
Box Length [in] 11.900
Finish Black Oxide
Item Height [in] 1.900
Nut Depth [in] 1-3/32
O-Ring J07500R
Drive End Outside Diameter [in] 1-21/32
Overall Length [in] 2-1/8
Size [mm] 30
Specification_ASME ASME B107.110
Box Quantity 6
Box Weight [lbs] 6.100
Crush Retaining Ring JRR07523
Box Height [in] 2.500
Carton Height [in] 8.000
Carton Width [in] 9.000
Country of Origin United States
Item Quantity 1
Brand Proto
Carton Length [in] 13.500
Harmonization Code 8204200000
Item Weight [lbs] 1.020
Length Type Standard
Box Width [in] 3.300
Carton Quantity 40
Item Width [in] 1.900
Point Size 12
Drive Size [in] 3/4
Nut End Outside Diameter [in] 1-7/8
