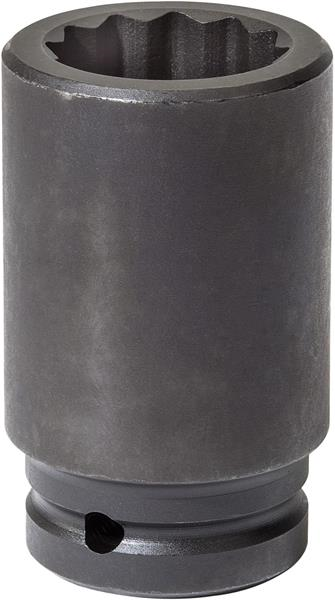

3/4 Inch Drive Deep Impact Socket 38 mm - 12 Point - Proto®

  • Item Code: J07538MLT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Box Weight [lbs] 14.080
Carton Weight [lbs] 45.800
Mouth Width 2 [in] 2-23/64
Nut Depth [in] 2-23/64
Nut End Outside Diameter [in] 2-5/16
UPC Code 662679113056
Carton Quantity 20
Item Height [in] 2.400
Overall Length [in] 3-1/2
Brand Proto
Item Weight [lbs] 2.290
Box Height [in] 3.600
Finish Black Oxide
Item Width [in] 2.400
O-Ring J07500R
Box Quantity 6
Crush Retaining Ring JRR07528
Carton Width [in] 9.000
Country of Origin United States
Drive End Outside Diameter [in] 1-51/64
Item Quantity 1
Carton Length [in] 13.500
Harmonization Code 8204200000
Item Length [in] 3.500
Box Length [in] 18.800
Box Width [in] 4.600
Carton Height [in] 8.200
Drive Size [in] 3/4
Length Type Deep
Specification_ASME ASME B107.110
Point Size 12
Size [mm] 38
