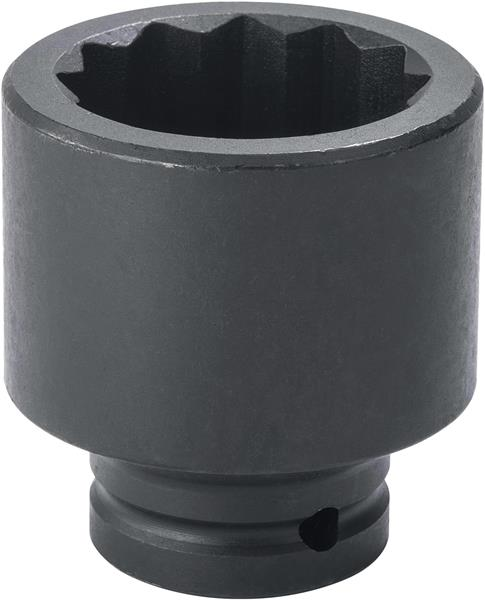

3/4 Inch Drive Impact Socket 50 mm - 12 Point - Proto®

  • Item Code: J07550MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Box Weight [lbs] 15.340
Carton Weight [lbs] 37.460
Mouth Width 2 [in] 1-29/64
Nut Depth [in] 1-29/64
UPC Code 662679112929
Brand Proto
Crush Retaining Ring JRR07528
Box Height [in] 3.600
Box Quantity 6
Finish Black Oxide
O-Ring J07500R
Specification_ASME ASME B107.110
Carton Quantity 14
Item Height [in] 3.000
Nut End Outside Diameter [in] 2-3/4
Carton Length [in] 13.500
Drive End Outside Diameter [in] 1-59/64
Harmonization Code 8204200000
Item Length [in] 3.100
Length Type Standard
Overall Length [in] 2-3/4
Country of Origin United States
Item Quantity 1
Item Weight [lbs] 2.560
Point Size 12
Size [mm] 50
Box Length [in] 18.800
Box Width [in] 4.600
Carton Height [in] 7.500
Carton Width [in] 9.000
Drive Size [in] 3/4
Item Width [in] 3.000
