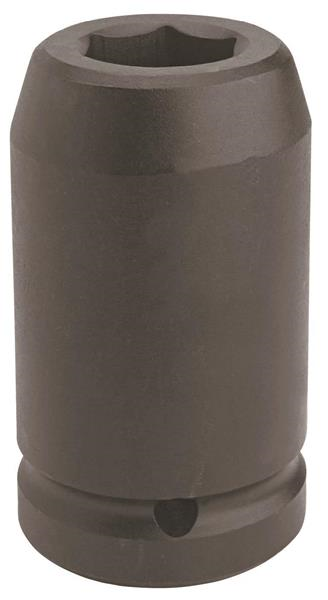

1 Inch Drive Deep Impact Socket 15/16 Inch - 6 Point - Proto®

  • Item Code: J10015L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679370190
Box Height [in] 2.100
Nut End Outside Diameter [in] 1-39/64
Box Length [in] 13.400
Drive Size [in] 1
Item Width [in] 2.000
Box Width [in] 4.100
Harmonization Code 8204200000
Item Length [in] 4.000
Item Quantity 1
Length Type Deep
Nose Width [in] 1-39/64
Nut Depth [in] 1/2
Box Weight [lbs] 9.900
Point Size 6
Box Quantity 6
Finish Black Oxide
Mouth Width 2 [in] 49/64
Size [in] 15/16
Drive End Outside Diameter [in] 2-1/8
Item Height [in] 2.000
Item Weight [lbs] 1.650
Overall Length [in] 3-3/4
Bolt Clearance Depth [in] 2-5/8
Brand Proto
Country of Origin United States
Crush Retaining Ring JRR10028
O-Ring J10000R1
