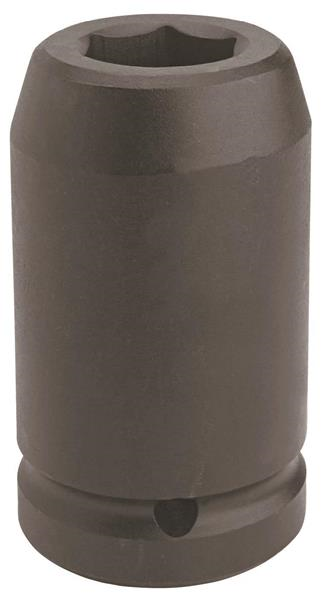

1 Inch Drive Deep Impact Socket 1-1/16 Inch - 6 Point - Proto®

  • Item Code: J10017L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679370268
Bolt Clearance Depth [in] 2-5/8
Box Width [in] 2.000
Country of Origin United States
Crush Retaining Ring JRR10028
Drive End Outside Diameter [in] 2-1/8
Nut End Outside Diameter [in] 1-3/4
Point Size 6
Box Weight [lbs] 3.610
Item Height [in] 2.000
O-Ring J10000R1
Item Length [in] 4.000
Box Height [in] 2.000
Brand Proto
Item Quantity 1
Overall Length [in] 3-3/4
Box Quantity 2
Item Width [in] 2.000
Box Length [in] 5.000
Harmonization Code 8204200000
Length Type Deep
Nut Depth [in] 5/8
Size [in] 1-1/16
Drive Size [in] 1
Finish Black Oxide
Item Weight [lbs] 1.800
