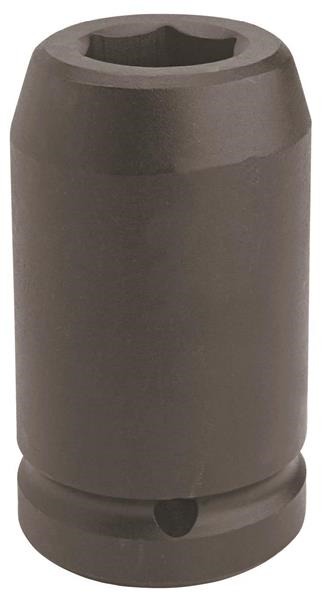

1 Inch Drive Deep Impact Socket 1-5/16 Inch - 6 Point - Proto®

  • Item Code: J10021L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Drive End Outside Diameter [in] 2-1/8
Item Weight [lbs] 2.240
UPC Code 662679370381
Harmonization Code 8204200000
Item Quantity 1
Item Width [in] 2.100
Length Type Deep
Box Length [in] 13.600
Box Width [in] 4.200
Brand Proto
Item Height [in] 2.100
Point Size 6
Drive Size [in] 1
Box Quantity 6
Finish Black Oxide
Size [in] 1-5/16
Box Height [in] 2.000
Nut End Outside Diameter [in] 2-1/8
Overall Length [in] 3-3/4
Bolt Clearance Depth [in] 2-5/8
Box Weight [lbs] 13.900
Country of Origin United States
Crush Retaining Ring JRR10028
Item Length [in] 3.900
Nut Depth [in] 49/64
O-Ring J10000R1
