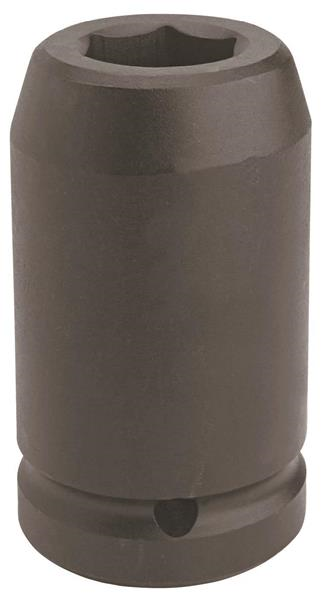

1 Inch Drive Deep Impact Socket 1-3/8 Inch - 6 Point - Proto®

  • Item Code: J10022L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Box Weight [lbs] 14.910
UPC Code 662679370404
Finish Black Oxide
O-Ring J10000R1
Size [in] 1-3/8
Brand Proto
Country of Origin United States
Drive End Outside Diameter [in] 2-1/8
Item Height [in] 2.200
Item Quantity 1
Item Width [in] 2.200
Box Length [in] 13.600
Box Quantity 6
Crush Retaining Ring JRR10028
Harmonization Code 8204200000
Point Size 6
Box Width [in] 4.200
Item Length [in] 4.000
Item Weight [lbs] 2.600
Box Height [in] 2.000
Length Type Deep
Nut End Outside Diameter [in] 2-1/8
Overall Length [in] 3-3/4
Bolt Clearance Depth [in] 2-5/8
Drive Size [in] 1
Nut Depth [in] 25/32
