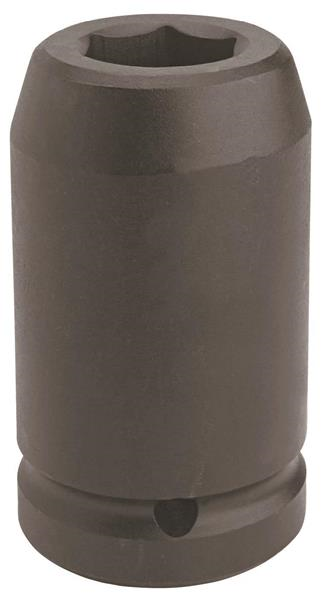

1 Inch Drive Deep Impact Socket 1-1/2 Inch - 6 Point - Proto®

  • Item Code: J10024L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679370459
Box Width [in] 2.600
Item Length [in] 4.000
Item Width [in] 2.400
Overall Length [in] 4
Brand Proto
Drive Size [in] 1
Item Weight [lbs] 2.770
Nut End Outside Diameter [in] 2-3/8
Crush Retaining Ring JRR10028
Drive End Outside Diameter [in] 2-3/8
Bolt Clearance Depth [in] 2-5/32
Item Height [in] 2.400
Length Type Deep
Size [in] 1-1/2
Box Height [in] 2.600
Box Length [in] 4.200
Country of Origin United States
O-Ring J10000R1
Harmonization Code 8204200000
Item Quantity 1
Nut Depth [in] 55/64
Box Quantity 1
Box Weight [lbs] 2.980
Finish Black Oxide
Point Size 6
