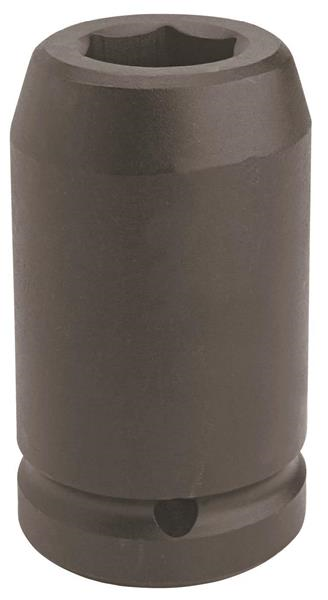

1 Inch Drive Deep Impact Socket 1-9/16 Inch - 6 Point - Proto®

  • Item Code: J10025L
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Bolt Clearance Depth [in] 2-3/8
Box Weight [lbs] 2.880
UPC Code 662679370497
Box Length [in] 4.200
Country of Origin United States
Item Length [in] 4.000
Nut End Outside Diameter [in] 2-3/8
Item Weight [lbs] 3.150
O-Ring J10000R1
Drive End Outside Diameter [in] 2-3/8
Length Type Deep
Brand Proto
Crush Retaining Ring JRR10028
Size [in] 1-9/16
Item Height [in] 2.500
Item Width [in] 2.500
Point Size 6
Box Quantity 1
Box Width [in] 2.400
Drive Size [in] 1
Finish Black Oxide
Overall Length [in] 4
Box Height [in] 2.400
Harmonization Code 8204200000
Item Quantity 1
Nut Depth [in] 55/64
