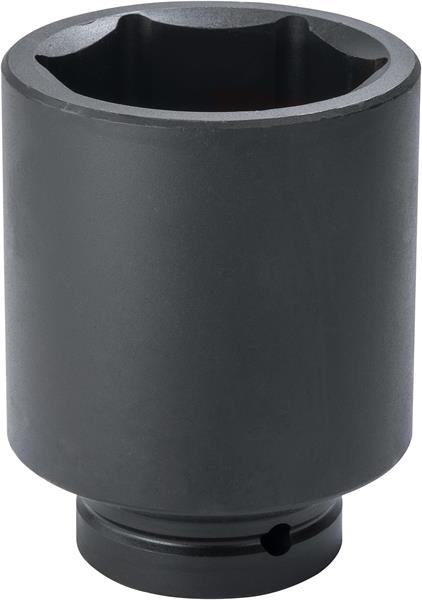

1 Inch Drive Deep Impact Socket 50 mm - 6 Point - Proto®

  • Item Code: J10050ML
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Stamped size for easy reference.
    • Side locking hole.

Tech Specs

Back To Top
Carton Quantity 11
Carton Weight [lbs] 46.100
Drive End Outside Diameter [in] 2-27/64
Nose Width [in] 2-63/64
UPC Code 662679112417
Crush Retaining Ring JRR10036
Length Type Deep
Size [mm] 50
Country of Origin United States
Harmonization Code 8204200000
Item Quantity 1
Item Width [in] 2.900
Carton Height [in] 8.000
Carton Length [in] 13.500
Item Height [in] 2.900
Carton Width [in] 9.000
Drive Size [in] 1
Finish Black Oxide
Item Length [in] 4.300
Nut End Outside Diameter [in] 2-63/64
Overall Length [in] 4-1/4
Nut Depth [in] 1-3/16
Specification_ASME ASME B107.110
Brand Proto
Item Weight [lbs] 4.190
O-Ring -
Point Size 6
