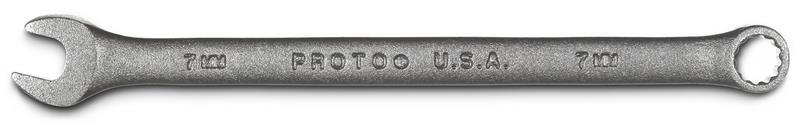

Black Oxide Combination Wrench 7 mm - 12 Point - Proto®

  • Item Code: J1207MBA
  • Brand: Proto
  • Unit Size: 1

Description

Non-reflective black oxide finish for use where non-plated products are required.

12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.

The box end is countersunk for easy application to the fastener.

15° angled offset box end helps keep shank clear of obstructions.

Anti-Slip Design (ASD) open end.

Inch sizes 1-5/16" and larger do not have ASD feature.

Box ends incorporate the TorquePlus™ system.

Features Tech Specs

Features

Back To Top
    • Non-reflective black oxide finish for use where non-plated products are required.
    • 12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.
    • The box end is countersunk for easy application to the fastener.
    • 15° angled offset box end helps keep shank clear of obstructions.
    • Anti-Slip Design (ASD) open end.
    • Inch sizes 1-5/16" and larger do not have ASD feature.
    • Box ends incorporate the TorquePlus„¢ system.

Tech Specs

Back To Top
Opening Size [in] 37/64
Outside Head Width 2 [in] 27/64
UPC Code 662679074081
Box Weight [lbs] 0.360
Carton Height [in] 7.000
Carton Quantity 300
Harmonization Code 8204110030
Item Height [in] 0.250
Item Quantity 1
Size [mm] 7
Box Height [in] 1.000
Box Length [in] 5.500
Brand Proto
Carton Length [in] 20.700
Country of Origin United States
Item Weight [lbs] 0.060
Box Width [in] 2.500
Carton Width [in] 10.000
Item Width [in] 0.500
Outside Dimensions Width [in] 27/64
Box Quantity 6
Finish Black Oxide
Outside Head Width 1 [in] 37/64
Carton Weight [lbs] 19.540
Head Thickness 2 [in] 13/64
Length [in] 131.1
Head Thickness 1 [in] 13/64
Item Length [in] 5.000
Throat Depth 1 [in] 5/16
Length [mm] 131.1
Overall Length [in] 5-5/32
Point Size 12
Specification_ASME ASME B107.100
