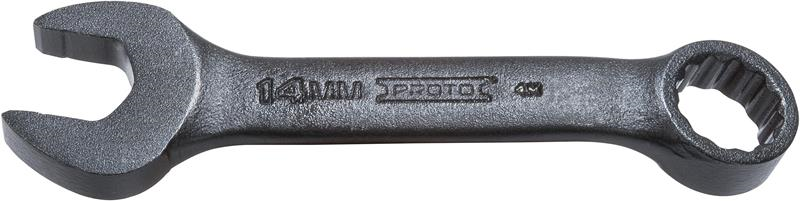

Black Oxide Metric Short Combination Wrench 14 mm - 12 Point - Proto®

  • Item Code: J1214MESB
  • Brand: Proto
  • Unit Size: 1

Description

12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.

Non-reflective black oxide finish for use where non-plated products are required.

The box end is countersunk for easy application to the fastener.

15° angled offset helps keep shank clear of obstructions.

Anti-Slip Design (ASD) open end.

Box ends incorporate the TorquePlus™ system.

Features Tech Specs

Features

Back To Top
    • 12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.
    • Non-reflective black oxide finish for use where non-plated products are required.
    • The box end is countersunk for easy application to the fastener.
    • 15° angled offset helps keep shank clear of obstructions.
    • Anti-Slip Design (ASD) open end.
    • Box ends incorporate the TorquePlus„¢ system.

Tech Specs

Back To Top
Carton Quantity 183
Carton Weight [lbs] 29.210
Specification_ASME ASME B107.100-2056
UPC Code 662679115876
Box Width [in] 2.100
Throat Depth 1 [in] 43/64
Box Height [in] 1.500
Box Quantity 6
Carton Width [in] 5.400
Head Outside Width [in] 19/64
Item Length [in] 4.500
Outside Head Width 1 [in] 1-1/4
Finish Black Oxide
Item Weight [lbs] 0.170
Thread Size [in] 43/64
Country of Origin United States
Point Size 12
Size [mm] 14
Box Weight [lbs] 1.000
Length Type Short
Specification_AS SAE AS955
Carton Height [in] 6.000
Head Thickness 1 [in] 19/64
Item Height [in] 0.600
Item Quantity 1
Overall Length [in] 4-1/2
Brand Proto
Harmonization Code 8204110030
Head Thickness 2 [in] 3/8
Box Length [in] 6.900
Carton Length [in] 15.300
Item Width [in] 1.200
Outside Dimensions Width [in] 57/64
Outside Head Width 2 [in] 57/64
