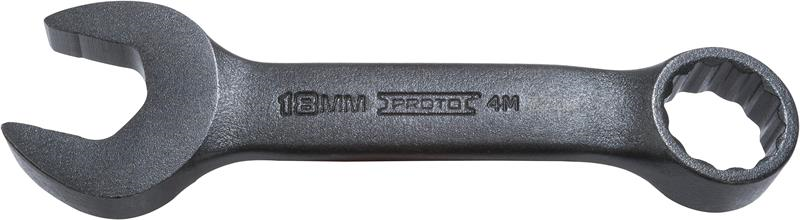

Black Oxide Metric Short Combination Wrench 18 mm - 12 Point - Proto®

  • Item Code: J1218MESB
  • Brand: Proto
  • Unit Size: 1

Description

12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.

Non-reflective black oxide finish for use where non-plated products are required.

The box end is countersunk for easy application to the fastener.

15° angled offset helps keep shank clear of obstructions.

Anti-Slip Design (ASD) open end.

Box ends incorporate the TorquePlus™ system.

Features Tech Specs

Features

Back To Top
    • 12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.
    • Non-reflective black oxide finish for use where non-plated products are required.
    • The box end is countersunk for easy application to the fastener.
    • 15° angled offset helps keep shank clear of obstructions.
    • Anti-Slip Design (ASD) open end.
    • Box ends incorporate the TorquePlus„¢ system.

Tech Specs

Back To Top
Carton Weight [lbs] 27.810
Opening Size [in] 1-35/64
Specification_AS SAE AS955
Specification_ASME ASME B107.100-2060
UPC Code 662679115913
Box Width [in] 2.600
Head Thickness 2 [in] 15/32
Outside Dimensions Width [in] 1-5/64
Outside Head Width 1 [in] 1-35/64
Throat Depth 1 [in] 27/32
Carton Quantity 100
Finish Black Oxide
Box Quantity 6
Carton Width [in] 5.400
Item Length [in] 5.200
Brand Proto
Carton Height [in] 6.000
Overall Length [in] 5-1/4
Point Size 12
Size [mm] 18
Box Length [in] 7.700
Item Width [in] 1.500
Length Type Short
Country of Origin United States
Harmonization Code 8204110030
Item Height [in] 0.700
Item Quantity 1
Box Height [in] 1.800
Carton Length [in] 15.300
Outside Head Width 2 [in] 1-5/64
Box Weight [lbs] 1.710
Head Thickness 1 [in] 11/32
Item Weight [lbs] 0.290
