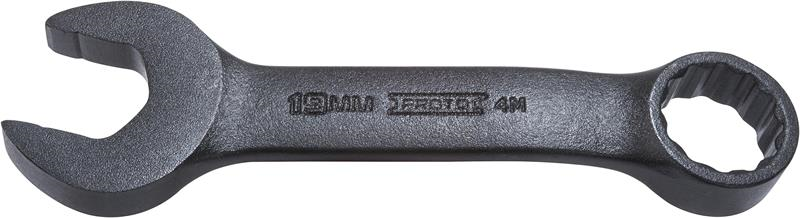

Black Oxide Metric Short Combination Wrench 19 mm - 12 Point - Proto®

  • Item Code: J1219MESB
  • Brand: Proto
  • Unit Size: 1

Description

12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.

Non-reflective black oxide finish for use where non-plated products are required.

The box end is countersunk for easy application to the fastener.

15° angled offset helps keep shank clear of obstructions.

Anti-Slip Design (ASD) open end.

Box ends incorporate the TorquePlus™ system.

Features Tech Specs

Features

Back To Top
    • 12 point box end allows for fine indexing, helping to improve speed and access. Fits 4, 6 and 12 point fasteners.
    • Non-reflective black oxide finish for use where non-plated products are required.
    • The box end is countersunk for easy application to the fastener.
    • 15° angled offset helps keep shank clear of obstructions.
    • Anti-Slip Design (ASD) open end.
    • Box ends incorporate the TorquePlus„¢ system.

Tech Specs

Back To Top
Box Weight [lbs] 1.860
Carton Quantity 173
Specification_ASME ASME B107.100-2061
UPC Code 662679115920
Carton Length [in] 20.800
Harmonization Code 8204110030
Item Quantity 1
Specification_AS SAE AS955
Thread Size [in] 57/64
Box Width [in] 3.500
Head Outside Width [in] 23/64
Item Height [in] 0.700
Item Length [in] 5.500
Item Width [in] 1.500
Length Type Short
Size [mm] 19
Throat Depth 1 [in] 57/64
Carton Height [in] 6.800
Outside Head Width 1 [in] 1-5/8
Outside Head Width 2 [in] 1-1/8
Box Quantity 6
Brand Proto
Finish Black Oxide
Box Height [in] 1.500
Carton Weight [lbs] 53.370
Carton Width [in] 10.100
Box Length [in] 9.300
Country of Origin United States
Head Thickness 1 [in] 31/64
Head Thickness 2 [in] 31/64
Item Weight [lbs] 0.310
Overall Length [in] 5-7/16
Point Size 12
