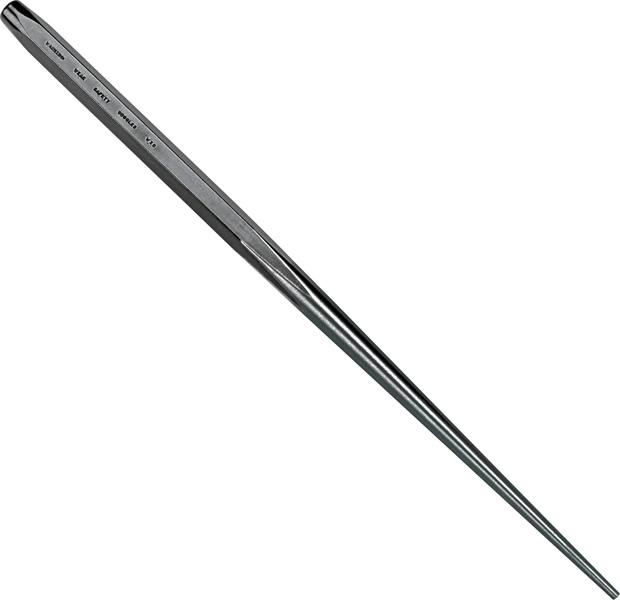

5/8 Inch x 3/16 Inch Long Aligning Punch - Proto®

  • Item Code: J155/8S2
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Application: to align holes in two or more pieces of metal through which a bolt or screw is to be inserted.
    • One-piece design for strength and durability.
    • Reverse taper to help prevent binding.
    • Made from S2 steel and specially heat-treated for greater strength and durability.
    • Modified parabolic striking end to help reduce mushrooming and chipping.
    • Black oxide finish to help prevent rust corrosion; extending tool life and performance.
    • A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.

Tech Specs

Back To Top
Harmonization Code 8203403000
Item Weight [lbs] 1.170
UPC Code 662679035761
Blade Length [in] 8
Box Height [in] 3.300
Country of Origin United States
Item Quantity 1
Box Width [in] 4.600
Item Height [in] 0.500
Box Length [in] 19.000
Striking End Diameter 9/16
Item Width [in] 0.500
Box Quantity 6
Material S2 Steel
Overall Length [in] 16
Specification_ASME ASME B107.48
Box Weight [lbs] 7.030
Brand Proto
Item Length [in] 16.100
Tip Width [in] 3/16
