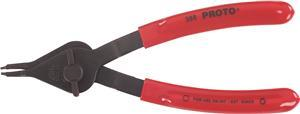

Retaining Ring Convertible Pliers - 5-7/8 Inch - Proto®

  • Item Code: J399
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Converts from internal to external or vice versa, when pivot screw is moved to adjacent tapped hole.
    • Use with either External or Internal Retaining Rings.
    • Fixed tips are precision formed and induction hardened for accurate fit and long wear.
    • Use the largest diameter tip that will fit the retaining ring being removed or installed.

Tech Specs

Back To Top
Bore Diameter [in] 3/8 - 9/16
Carton Weight [lbs] 8.030
Length [in] 5-7/8
UPC Code 662679031855
Box Height [in] 1.500
Carton Length [in] 10.500
Carton Width [in] 6.400
Handle Color Red
Tip Angle 0
Box Quantity 6
Harmonization Code 8203206030
Brand Proto
Carton Quantity 50
Style Convertible
Item Length [in] 6.000
Box Weight [lbs] 0.990
Carton Height [in] 4.700
Item Height [in] 0.500
Item Quantity 1
Item Width [in] 2.800
Overall Length [in] 5-7/8
Tip Size .038
Box Width [in] 3.500
Country of Origin United States
Item Weight [lbs] 0.150
Box Length [in] 9.300
Specification_ASME ASME B107.19
