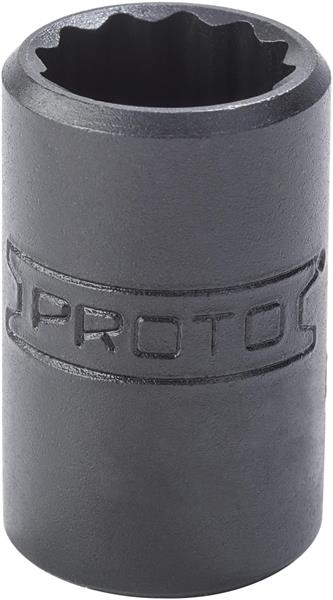

1/4 Inch Drive Black Oxide Socket 9/32 Inch - 12 Point - Proto®

  • Item Code: J4709TB
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Weight [lbs] 3.570
Mouth Width 2 [in] 17/64
UPC Code 662679109257
Box Length [in] 4.700
Box Width [in] 2.400
Carton Width [in] 5.400
Item Weight [lbs] 0.030
Nose Width [in] 27/64
Drive End Outside Diameter [in] 27/64
Finish Black Oxide
Item Length [in] 0.900
Item Width [in] 0.400
Nut End Outside Diameter [in] 27/64
Bolt Clearance Depth [in] 9/16
Box Quantity 6
Overall Length [in] 7/8
Size [in] 9/32
Carton Height [in] 6.000
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.300
Carton Quantity 160
Harmonization Code 8204200000
Length Type Standard
Nut Depth [in] 17/64
Brand Proto
Country of Origin United States
Item Quantity 1
Box Weight [lbs] 0.150
Carton Length [in] 15.300
Item Height [in] 0.400
Drive Size [in] 1/4
