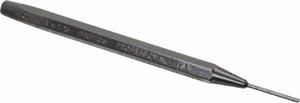

1/16 Inch Pin Punch - Proto®

  • Item Code: J471/4X1/16
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Two-piece design allows the tip to be hard for durability, while allowing it to be produced straight to help prevent binding.
    • Reverse taper to help prevent binding.
    • Made from S2 steel and specially heat-treated for greater strength and durability.
    • Modified parabolic striking end to help reduce mushrooming and chipping.
    • Black oxide finish to help prevent rust corrosion; extending tool life and performance.
    • A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.

Tech Specs

Back To Top
Blade Length [in] 3/4
Striking End Diameter 7/32
UPC Code 662679010157
Brand Proto
Item Height [in] 0.300
Item Quantity 1
Item Weight [lbs] 0.060
Box Width [in] 2.250
Overall Length [in] 4-3/8
Tip Width [in] 1/16
Box Length [in] 4.500
Harmonization Code 8205595560
Specification_ASME ASME B107.48
Box Quantity 6
Country of Origin United States
Material S2 Steel
Box Weight [lbs] 0.360
Item Length [in] 4.500
Box Height [in] 1.250
Item Width [in] 0.300
