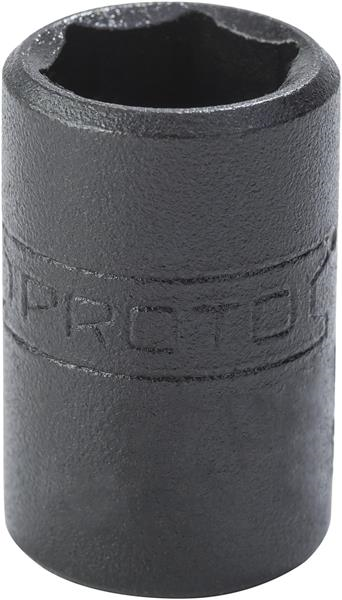

1/4 Inch Drive Black Oxide Socket 7/16 Inch - 6 Point - Proto®

  • Item Code: J4714B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Quantity 185
Carton Weight [lbs] 8.160
UPC Code 662679109417
Box Height [in] 1.300
Harmonization Code 8204200000
Length Type Standard
Box Length [in] 4.700
Box Width [in] 2.400
Drive Size [in] 1/4
Nut End Outside Diameter [in] 5/8
Carton Length [in] 15.300
Carton Width [in] 5.400
Mouth Width 2 [in] 23/64
Point Size 6
Drive End Outside Diameter [in] 5/8
Finish Black Oxide
Item Quantity 1
Item Weight [lbs] 0.030
Nut Depth [in] 23/64
Brand Proto
Carton Height [in] 6.000
Item Width [in] 0.700
Size [in] 7/16
Specification_ASME ASME B107.110-2012
Bolt Clearance Depth [in] 17/32
Box Quantity 6
Country of Origin United States
Item Height [in] 0.700
Overall Length [in] 7/8
Box Weight [lbs] 0.160
Item Length [in] 0.900
