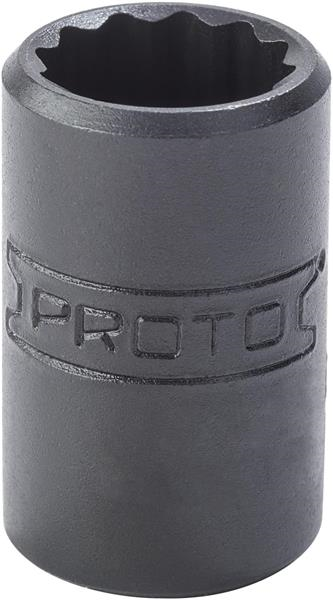

1/4 Inch Drive Black Oxide Socket 7/16 Inch - 12 Point - Proto®

  • Item Code: J4714TB
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Quantity 177
Carton Weight [lbs] 8.790
UPC Code 662679109295
Box Quantity 6
Brand Proto
Nut Depth [in] 3/8
Overall Length [in] 7/8
Carton Height [in] 6.000
Point Size 12
Specification_ASME ASME B107.110-2012
Item Width [in] 0.600
Bolt Clearance Depth [in] 17/32
Country of Origin United States
Item Height [in] 0.600
Item Length [in] 0.900
Box Width [in] 2.400
Drive Size [in] 1/4
Box Weight [lbs] 0.290
Carton Length [in] 15.300
Nut End Outside Diameter [in] 5/8
Box Length [in] 4.700
Finish Black Oxide
Box Height [in] 1.300
Carton Width [in] 5.400
Drive End Outside Diameter [in] 5/8
Harmonization Code 8204200000
Item Quantity 1
Item Weight [lbs] 0.050
Length Type Standard
Size [in] 7/16
