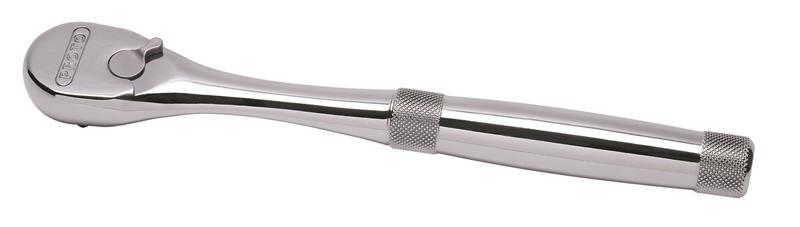

1/4 Inch Drive Premium Pear Head Ratchet 6-11/16 Inch - Proto®

  • Item Code: J4749XL
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Small pear head design for access in tight, hard-to-reach work areas.
    • 45-tooth gear provides balance between 8° articulation angle and high torque carrying capacity.
    • Sealed design helps prevent debris from entering ratchet mechanism reducing wear. Also, helps to keep lubrication contained within the components. Patent pending design.
    • Low profile reversing lever design for quick, one-hand operation.
    • Contoured, ergonomically designed handle for comfort. Knurled bands allow for increased grip and slip resistance.
    • Double nickel chrome plated for enhanced corrosion protection or black oxide finish.
    • Field repairable.

Tech Specs

Back To Top
UPC Code 662679573768
Carton Length [in] 15.200
Drive Size [in] 1/4
Item Height [in] 0.800
Item Quantity 1
Box Weight [lbs] 1.580
Country of Origin United States
Item Length [in] 6.700
Item Weight [lbs] 0.250
Overall Length [in] 6-11/16
Carton Weight [lbs] 25.570
Carton Width [in] 5.500
Style Pear Head
Box Length [in] 6.900
Box Quantity 6
Brand Proto
Carton Quantity 100
Harmonization Code 8466100175
Specification_ASME ASME B107.10M
Box Height [in] 1.500
Box Width [in] 2.100
Carton Height [in] 6.000
Finish Full Polish
Item Width [in] 0.900
