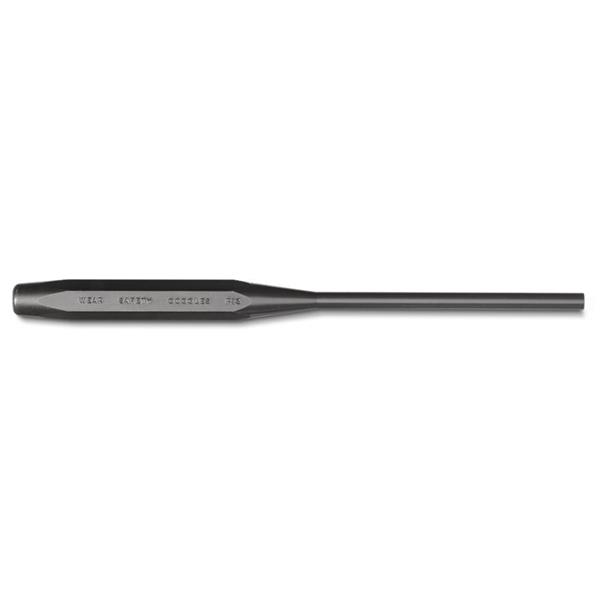

5/16 Inch Super-Duty Long Punch Pin - Proto®

  • Item Code: J48516LS2
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reverse taper to help prevent binding.
    • Made from S2 steel and specially heat-treated for greater strength and durability.
    • Modified parabolic striking end to help reduce mushrooming and chipping.
    • Black oxide finish to help prevent rust corrosion; extending tool life and performance.
    • A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.

Tech Specs

Back To Top
UPC Code 662679047108
Harmonization Code 8203403000
Box Height [in] 1.500
Brand Proto
Material S2 Steel
Specification_ASME ASME B107.48
Item Weight [lbs] 0.320
Item Width [in] 0.400
Box Length [in] 9.300
Box Weight [lbs] 1.940
Country of Origin United States
Item Quantity 1
Box Width [in] 3.500
Overall Length [in] 8
Tip Width [in] 5/16
Box Quantity 6
Item Length [in] 8.000
Item Height [in] 0.400
